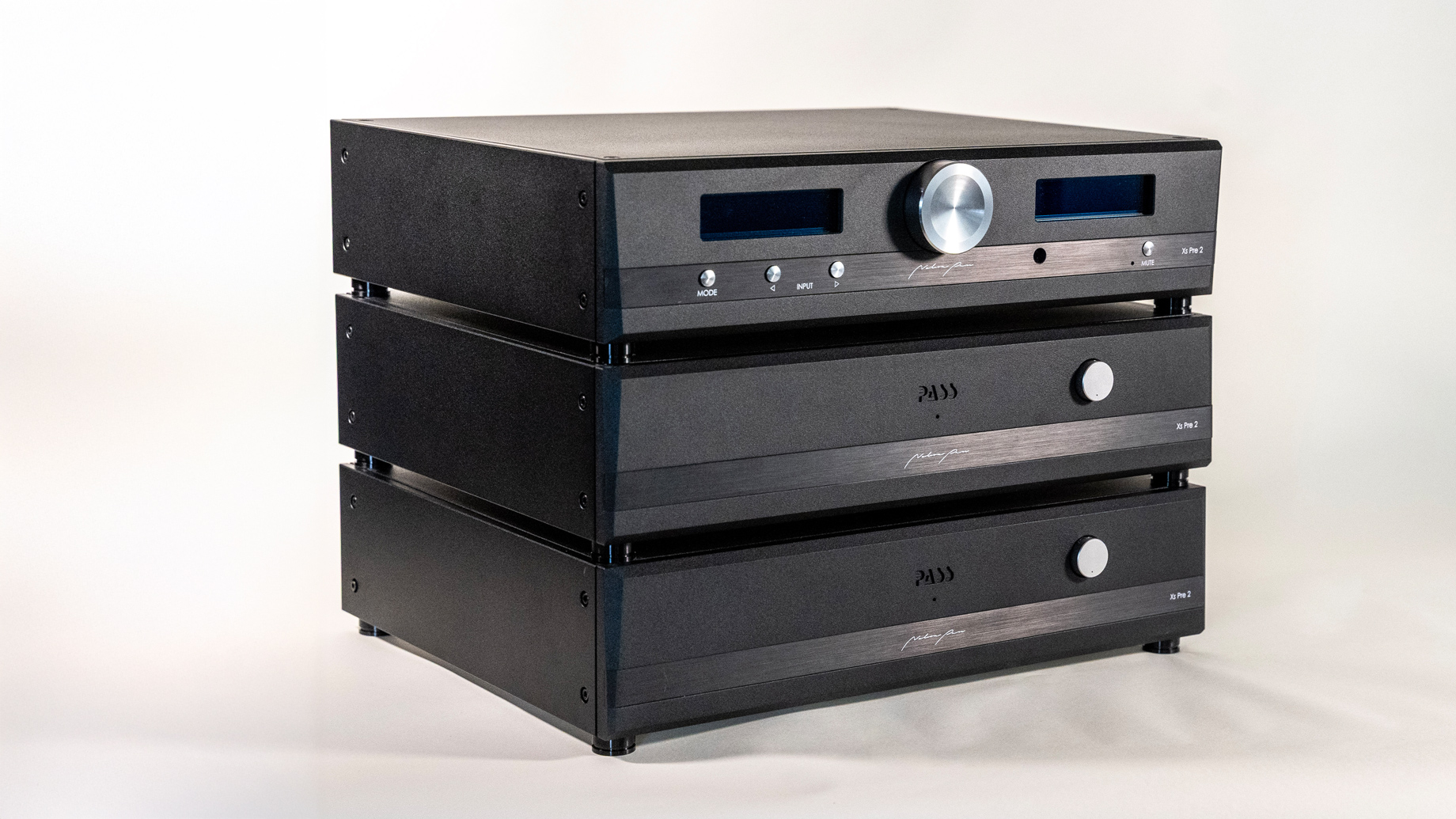

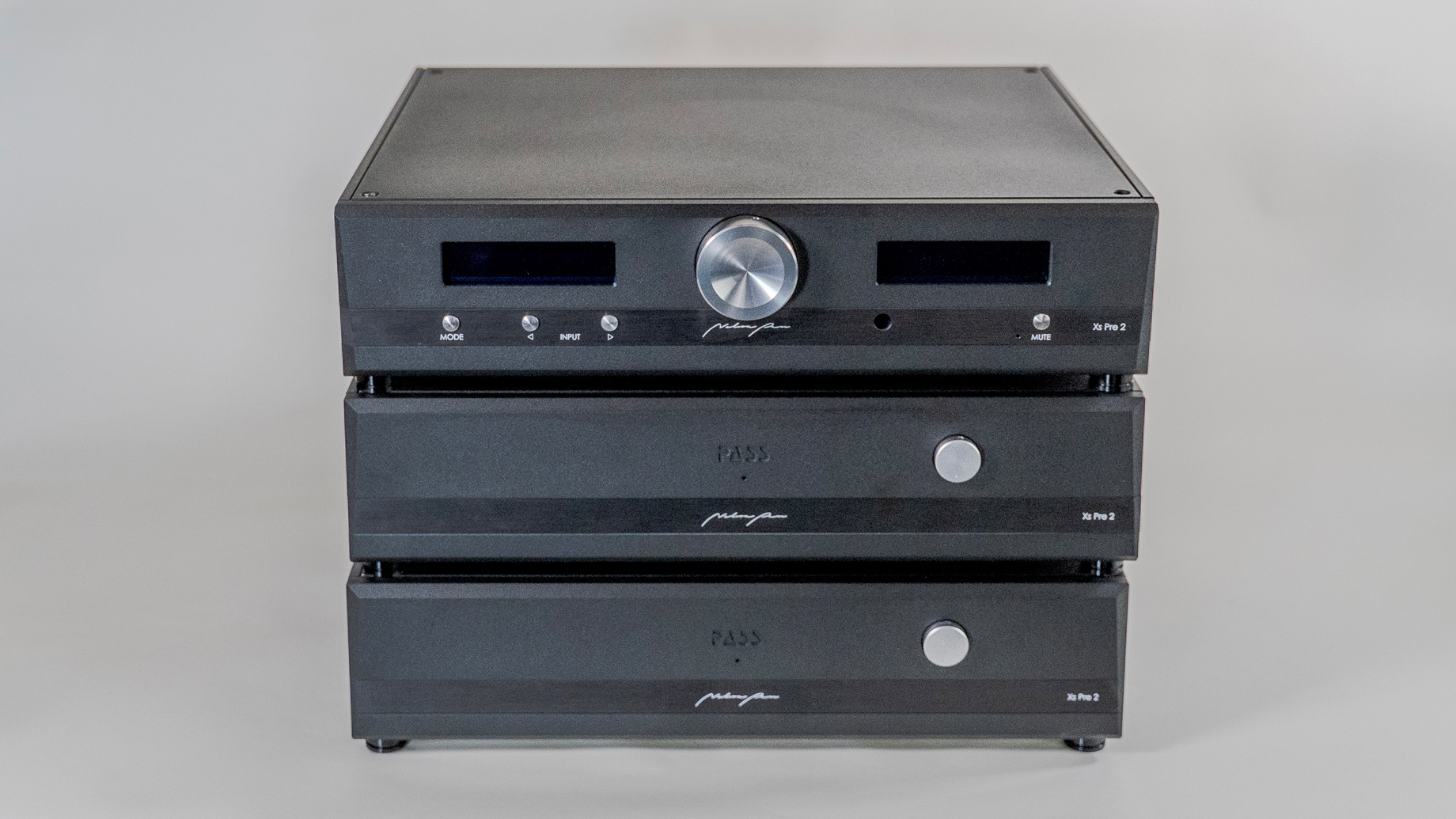

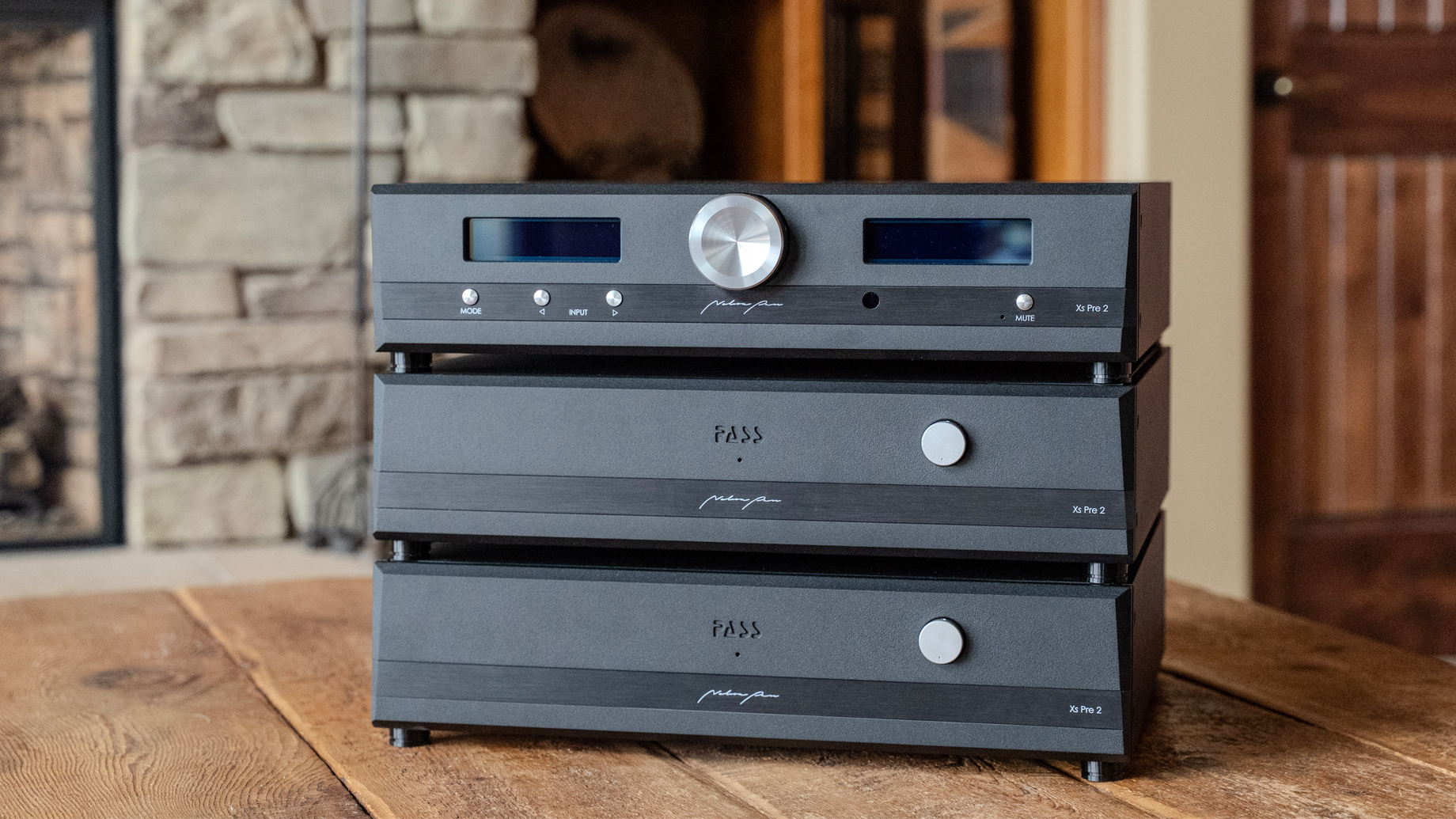

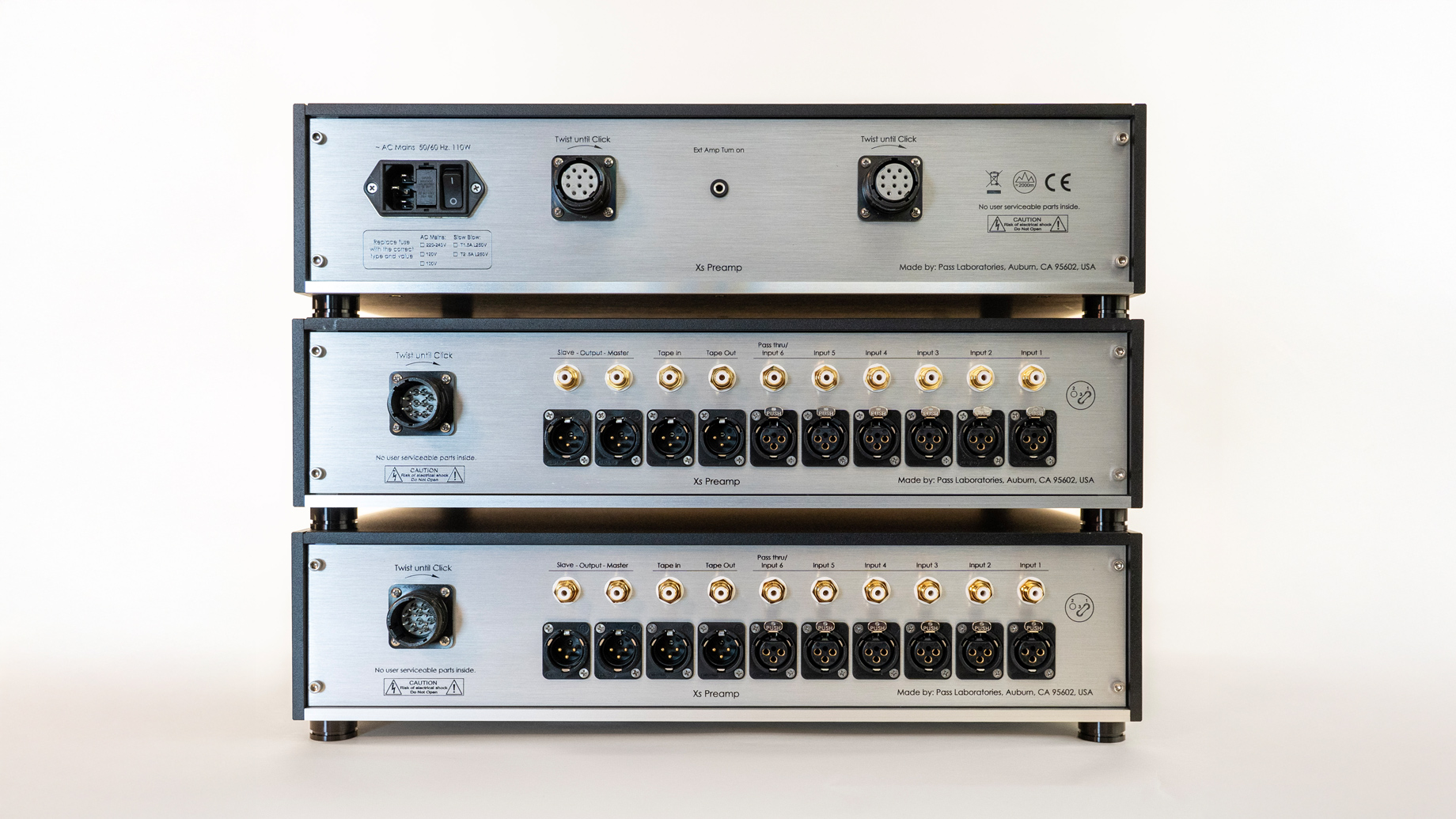

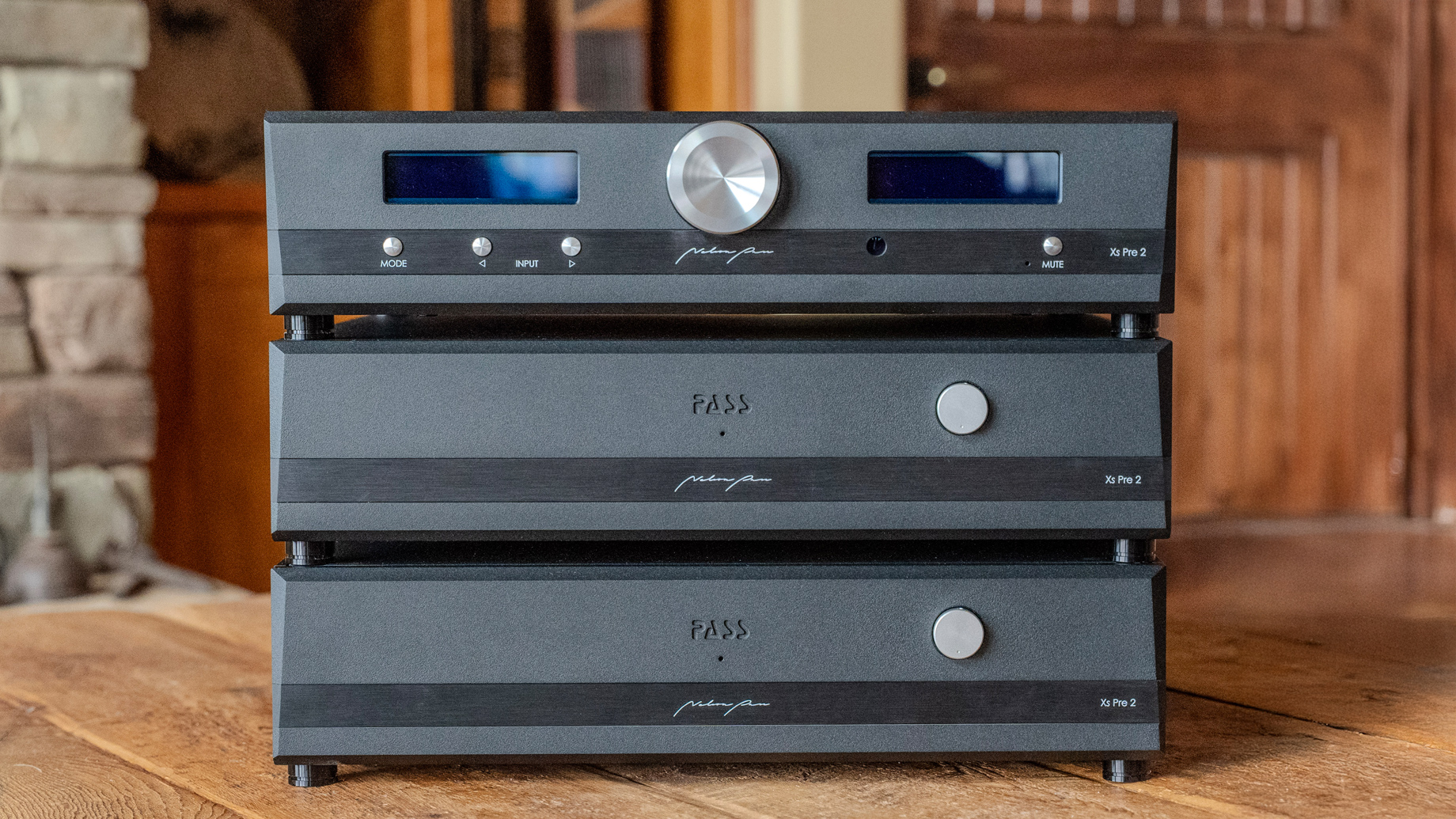

The fully redesigned three-box XS Pre 2 incorporates innovations from the ground up. Sonically, it is quieter and more dynamic than its predecessor, with better resolution from the new power supply and gain circuitry. It recreates space more accurately for improved realism thanks to upgrades in both the gain stage and the supply. The power supply is dual mono with three double-shielded transformers—one per channel plus a separate digital supply—along with increased capacitance and added pre-regulators. The output stage runs with more Class A bias and lower output impedance, making it easy to drive long cable runs and any power amplifier. The volume control offers 100 dB of range in 0.5 dB steps. New ceramic-based, gold-plated circuit boards feature Toshiba FETs in the input stage and MOSFETs in the output stage—parts we've long preferred for maximum sonics and secured for product longevity.

Specs at a glance

Gain: 10.5 dB (Balanced)

Output Impedance: 30 Ω (RCA), 60 Ω (XLR)

Input Impedance: 20 kΩ (RCA), 40 kΩ (XLR)

Frequency Response: ±0.05 dB (10 Hz–20 kHz), –0.7 dB @ 100 kHz Crosstalk / Channel Separation: 110 dB (Unbalanced), >125 dB (Balanced)

Residual Noise: <15 μV (unweighted, 10–20 kHz)

THD: ≤0.001% @ 1 V, 1 kHz; 0.00085% @ 1 kHz (20–20 kHz filter)

Power Consumption: 110 W

Weight: 85 lbs (system)

According to designer Wayne Colburn, the XS Pre 2 "is the best work I've done in 35 years." Experience the difference.
