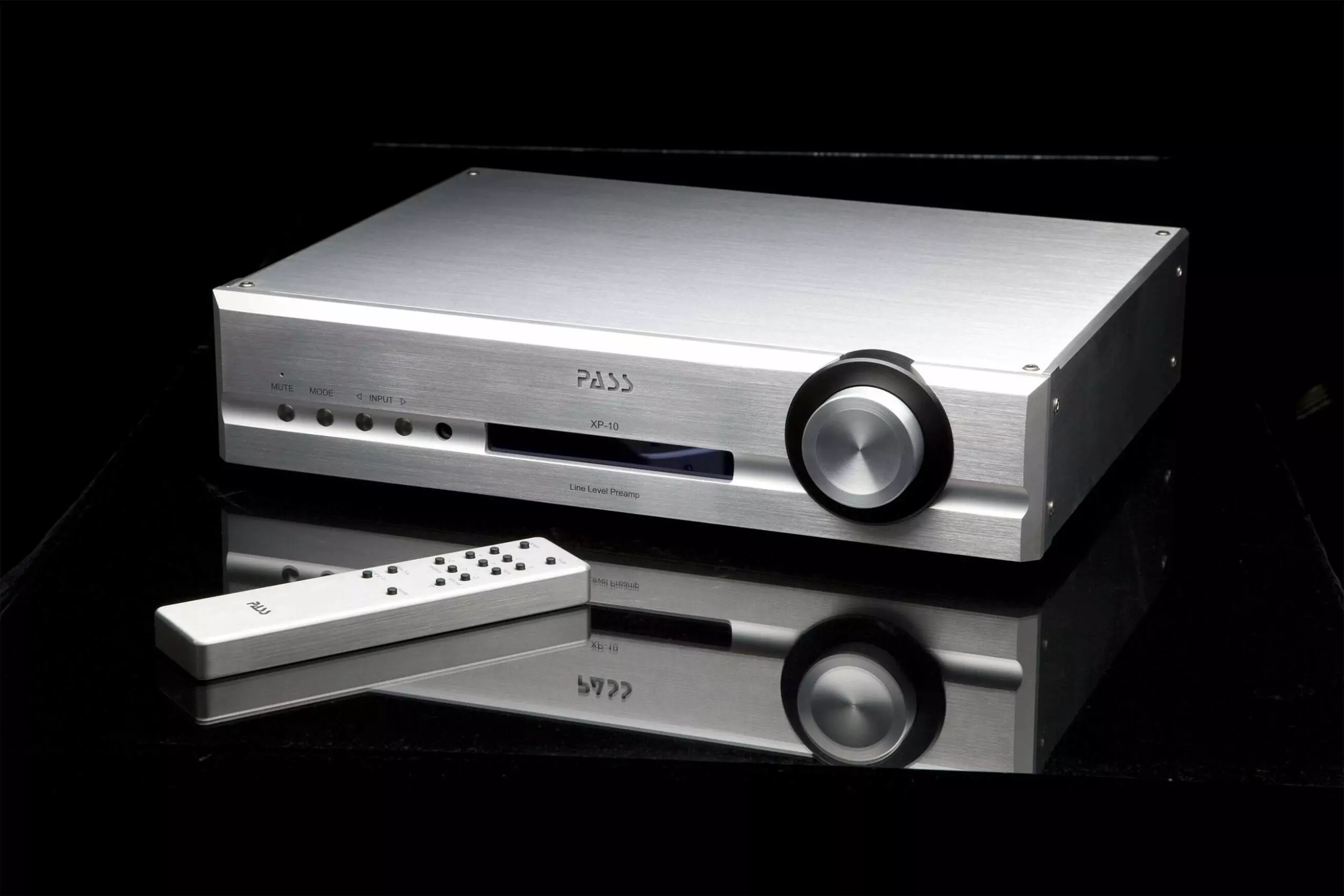

Designed with considerable technical improvements over past preamplifiers, the XP-10 showers the listener with a more dynamic sound, cleaner and more accurately delineated bass lines and a greatly refined spatial envelope. Though the current entry-level line-stage preamplifier, this descendant of the highly acclaimed and successful Pass Laboratory's X series preamplifiers sounds and measures significantly better than its predecessors.
“With the PASS’ “textured” sound, vocals were especially good. Individual singers’ timbre were more quickly and easily identifiable.” Larry Cox
positive-feedback.com
Writers Choice Awards 2017
Positive-Feedback
| Overall Gain | -65 dB to +10 dB | Cross-talk | -90 dB, 1 kHz Ref 1V |
| Volume Steps | 83 | Signal to Noise Ratio | < -110 dB, Ref 5V |
| Remote | Yes | Power Consumption (Watts) | 10 |
| Inputs | 5 | Number of Chassis | 1 |
| Outputs | 2 | Dimensions, Each Chassis | 17”W x 12”D x 4”H |
| Frequency Response | -3dB @ 2 Hz and 60 kHz | Weight (LBS) | 20 |
| Input Impedance | 96k bal, 48k single-ended | Shipping Box Dim | 23 x 18 x 10 |
| Output Impedance | 1000 Ohm bal, 150 Ohm SE | Shipping Weight (LBS) | 25 |
| CMRR | -60 dB, 1 kHz |
| Overall Gain | -65 dB to +10 dB | Cross-talk | -90 dB, 1 kHz Ref 1V |
| Volume Steps | 83 | Signal to Noise Ratio | < -110 dB, Ref 5V |
| Remote | Yes | Power Consumption (Watts) | 10 |
| Inputs | 5 | Number of Chassis | 1 |
| Outputs | 2 | Dimensions, Each Chassis | 17”W x 12”D x 4”H |
| Frequency Response | -3dB @ 2 Hz and 60 kHz | Weight (LBS) | 20 |
| Input Impedance | 96k bal, 48k single-ended | Shipping Box Dim | 23 x 18 x 10 |
| Output Impedance | 1000 Ohm bal, 150 Ohm SE | Shipping Weight (LBS) | 25 |
| CMRR | -60 dB, 1 kHz |
